• Grab Rail JD Macdonald Grab Rail 40 Degree Sloping Arm GCS0140JD

Grab Rail

SKU JDM-GFN-1-LH IN STOCK

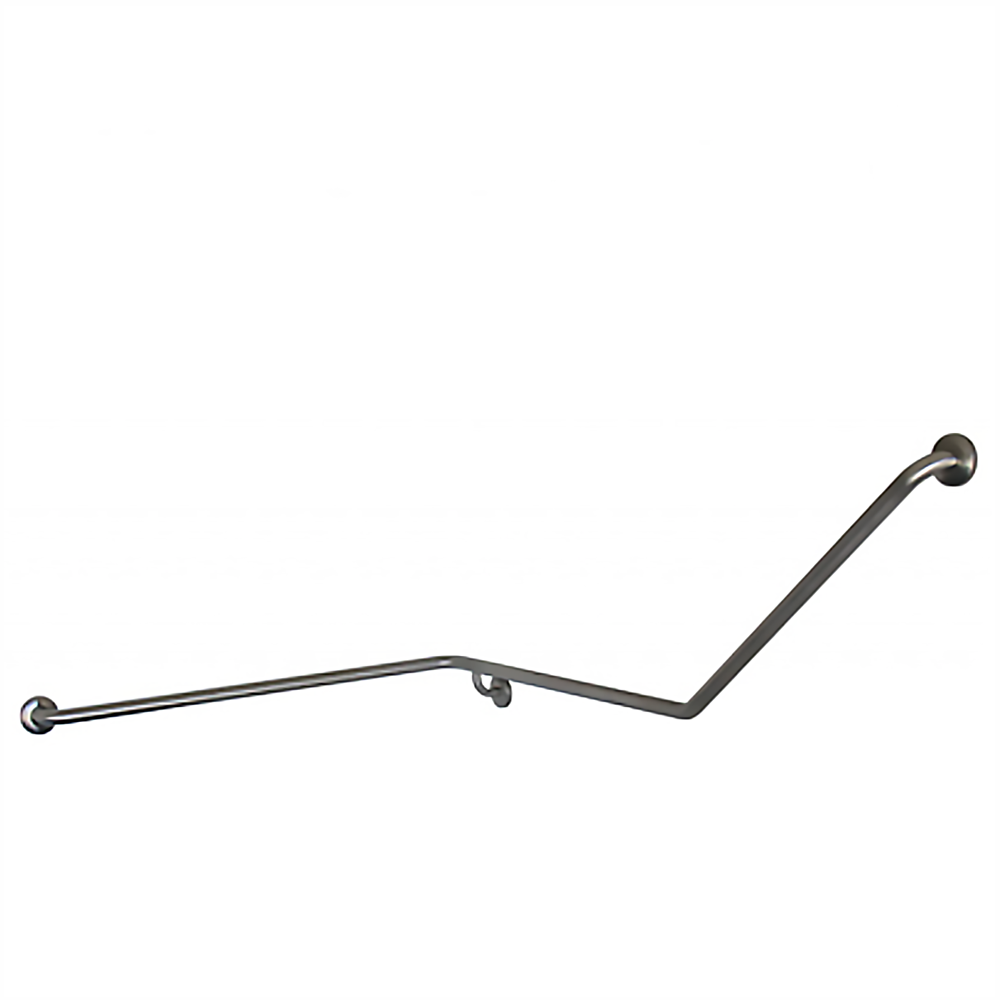

JD Macdonald Grab Rail 40* Sloping Arm

JD Macdonald Grab Rail 40* Sloping Arm

This grab rail with a sloping arm at a 40° angle from horizontal is crafted to provide superior support and accessibility in washrooms and accessible bathrooms. Made of grade 304 stainless steel, it features a diameter of 32 mm and a wall flange that is heli-welded with flush cover plates for clean integration and high durability. The construction is robust enough to support high loads and provide safe assistance for mobility-challenged users.

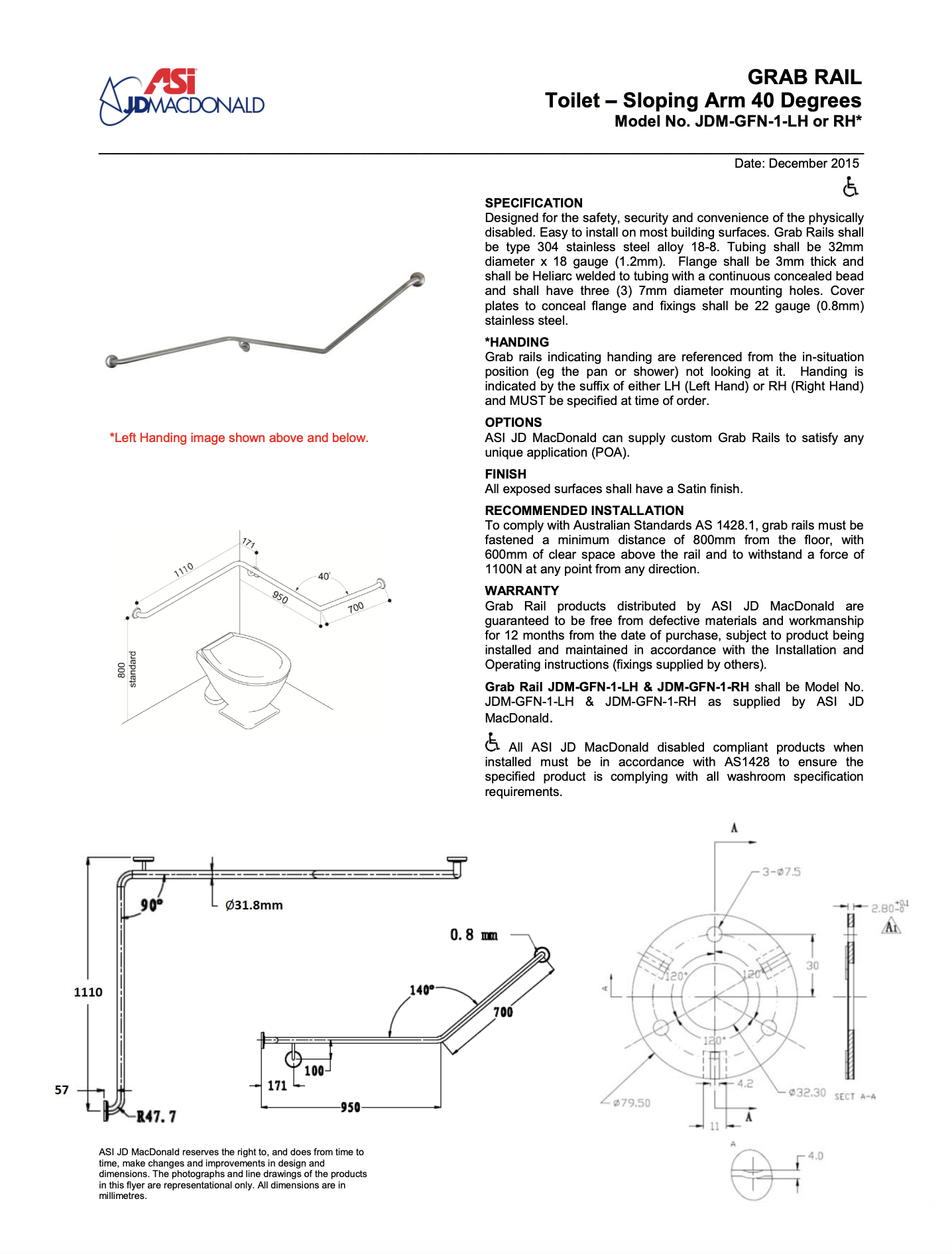

Download Product Specification
$275.00
$275.00
Sale Sold out
Including GST.

Shipping Estimate:

View full details
  • Fabricated of grade 304 stainless steel for concealed cisterns
  • Innovative hygienically sealed flanges in a heavy duty alloy casting with bent 40 degree angle (1110 x 950 x 700mm)
  • Clean seal fully welded construction is finished in satin stainless steel tubing with double chrome plated innovative flange and cover system
  • Simple fixing method with a hygienically sealed installation
  • with silicone ‘o’ ring seals. Designed for the safety, security and convenience of the physically disabled
  • Easy to install on most building surfaces
  • Tubing diameter is 32mm

Recommended Installation Height:
To comply with Australian Standards AS 1428.1, grab rails must be fastened a minimum distance of 800mm from the floor, with 600mm of clear space above the rail and to withstand a force of 1100N at any point from any direction.

ManufacturerAsi JDMacdonald

SKUJDM-GFN-1-LH

MPNOZ01289

UPC0711745544154
